Pivot Door is a type of axis doors, usually applied as an exterior door, front door, entrance door for residential villas, commercial entrances etc…
For most projects, the exterior pivot door is a custom door, usually heavy duty than hinged doors, result in a larger size.
The best pivot door should be a custom, bespoke door for each site.
part of a pivot door
A completed pivot door system is combined with door leaf, door jamb, threshold(not necessary), locks, pull handles, door holder, seal strip etc… The most important part is the pivot system – PIVOT HINGE
All Heavy Duty Pivot door hinge is crafted by SUS 304 or 316, Light Duty Pivot Hinge is crafted by Aluminum or SUS. They both include top pivot, bottom pivot, floor plate and ceiling plate.
Different from Floor spring pivot hinge or axis pivot hinge, the “core” is on the bottom pivot, which is the control center of the pivot system, connecting with top pivot.
PIVOT DOORS Benefits
Pivot doors are the symbol of the house. It looks more elegant than a normal hinged door from its axis pivot system. A hinged exterior door looks similar with those interior doors.
The pivot hinges offer more flexibility door designs. From the axis system, you can decide if you need center-axis position or off-center axis position, suitable for any bespoke space which requestes different specification of the doors.
For a custom pivot door, the pivot hinge system allows the larger door width size than hinged doors, you can customize your big size & heavy duty doors. If you are going to design a heavy-duty entrance door, width more than 2 meters, height over 6 meters, you can only use pivot door and pivot hinge axis system to achieve your target.
HOW TO INSTALL A PIVOT DOOR?
Installing a pivot door is not an easy work, usually you need an expert installation service or team. Because it’s super heavy duty.
1. install the door profile
2. Mark the top & bottom pivot position lines on door profile
3. install the top pivot & bottom pivot parts on the door leaf with screws
4. install the door leaf and align to the bottom pivot plate
5. hold the door leaf up and align to the top pivot plate
6. screwing the top pivot axis into the top pivot plate
A video will be uploaded soon……

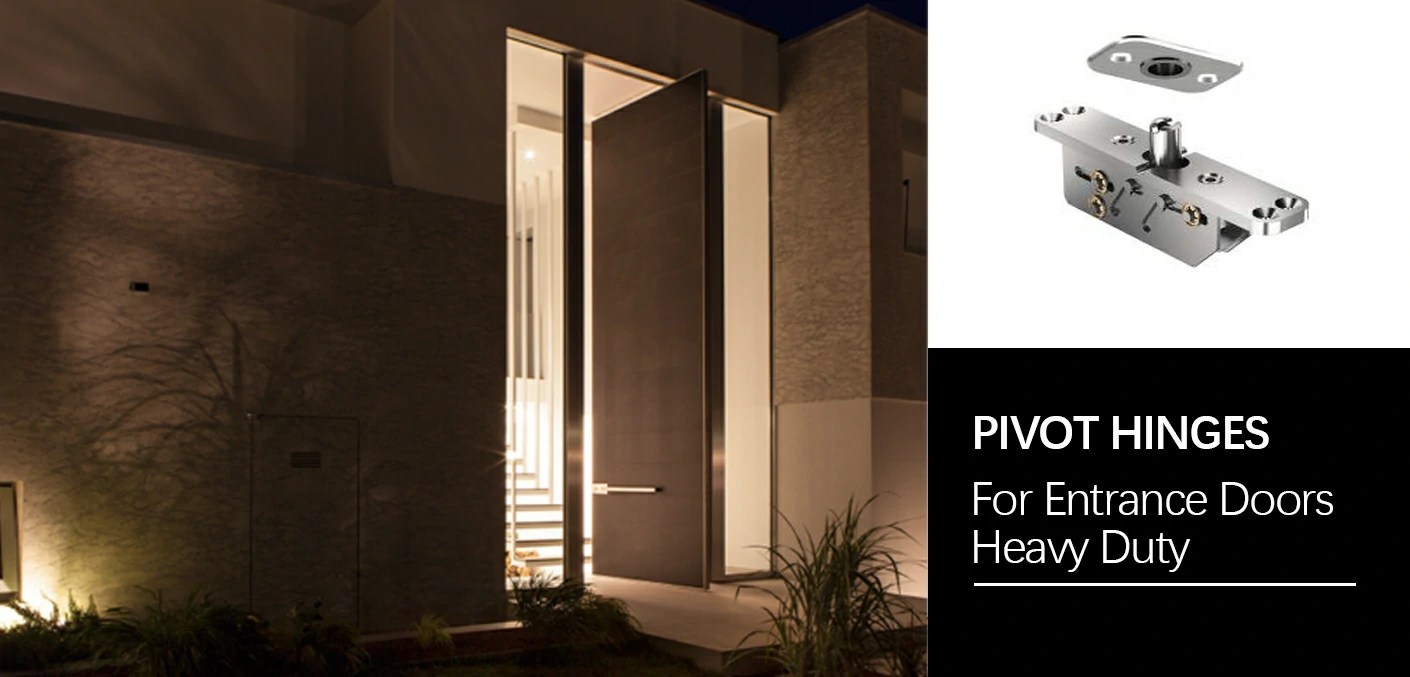

What is the pivot hinge system
Pivot door hinge is the main part of the pivot door. A high quality & durable pivot hinge is super important to the pivot door. You will never want to save $100 on pivot door hardware to put risk on your $10k pivot door……
A modern pivot hinge should be hidden, minimum but carrys heavy duty pivot doors. Most popular range is 300kgs (661 lbs), 350 kgs (771 lbs), 500 kgs (1100 lbs). Some are 100 kgs (220 lbs) and 150 kgs (330 lbs).
Traditional pivot hinge system is floor spring type which needs to pre-drill the floor, and the bottom plate is super visible on the floor.
For the pivot hinge, they are either self-close or open-holding or free-swing.
